May this guide serves as a brief roadmap to buying a Mercedes‑Benz G‑Class. Inside, I highlight the key model variations and desirable options, flag common mechanical and electrical trouble spots, pinpoint notorious rust zones—particularly around the windshield, door sills, and rear frame—and outline maintenance considerations that can influence long‑term ownership costs. Whether you’re eyeing an early W463 or a newer AMG variant, the sections ahead will help you inspect with confidence and negotiate from a position of knowledge. At this point in time I have owned well over 200 G Wagens in every flavor imaginable.

1. RUST - RUST - RUST

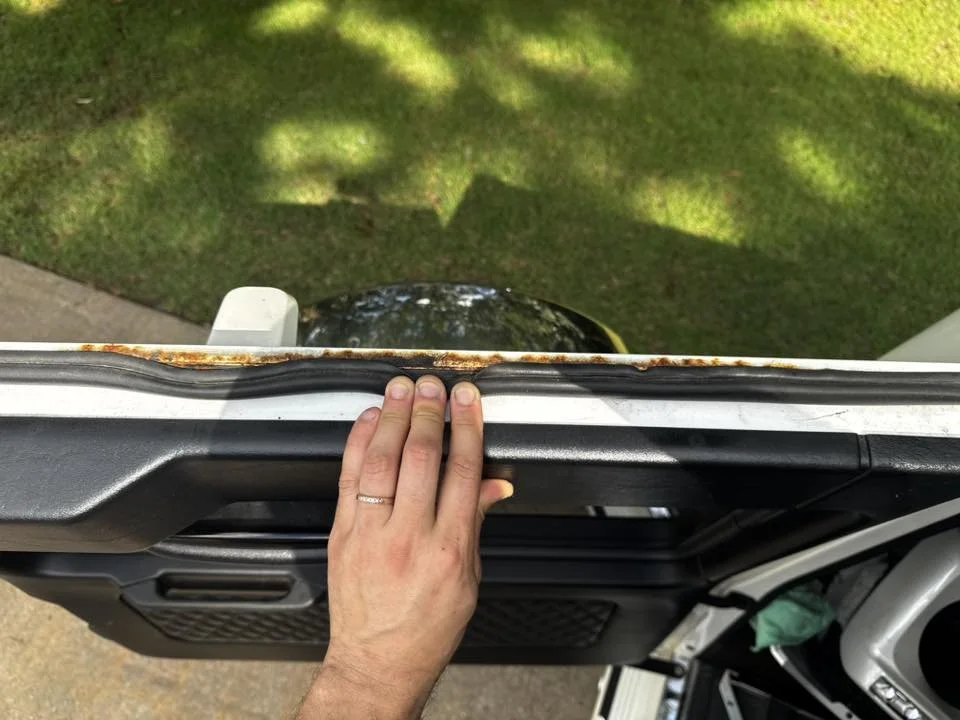

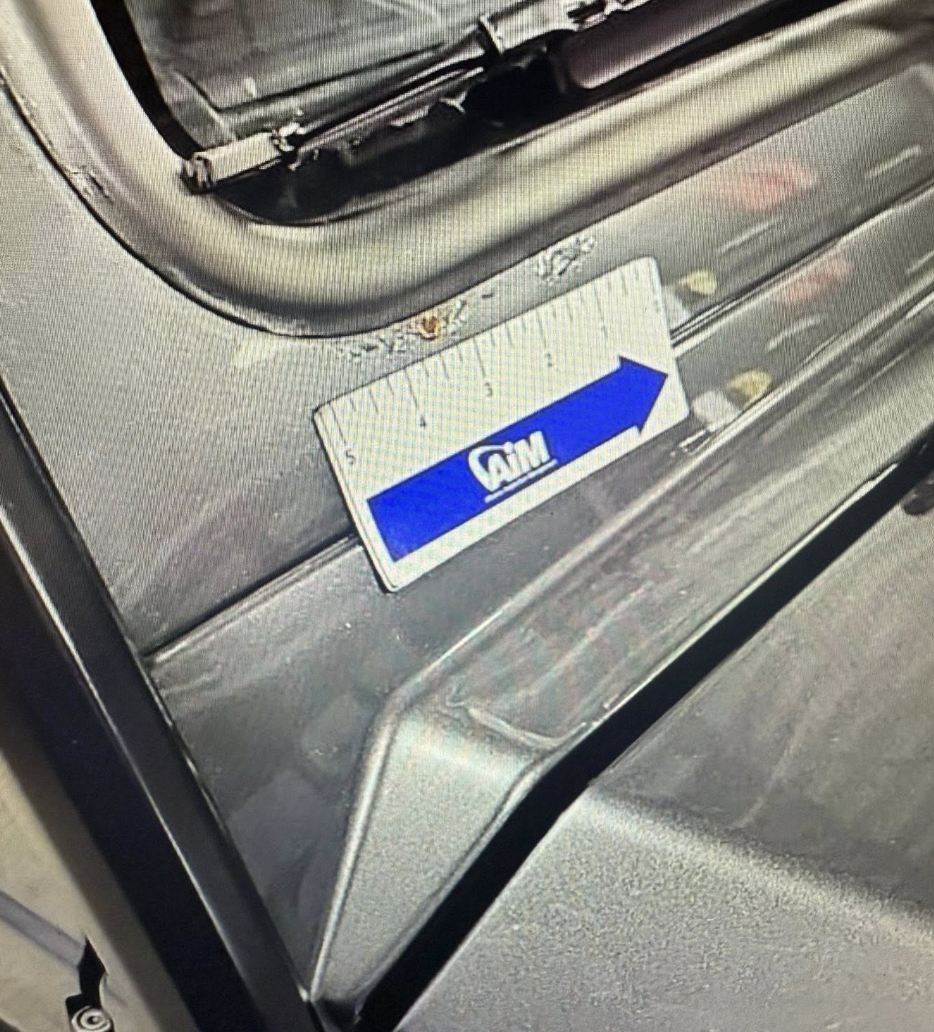

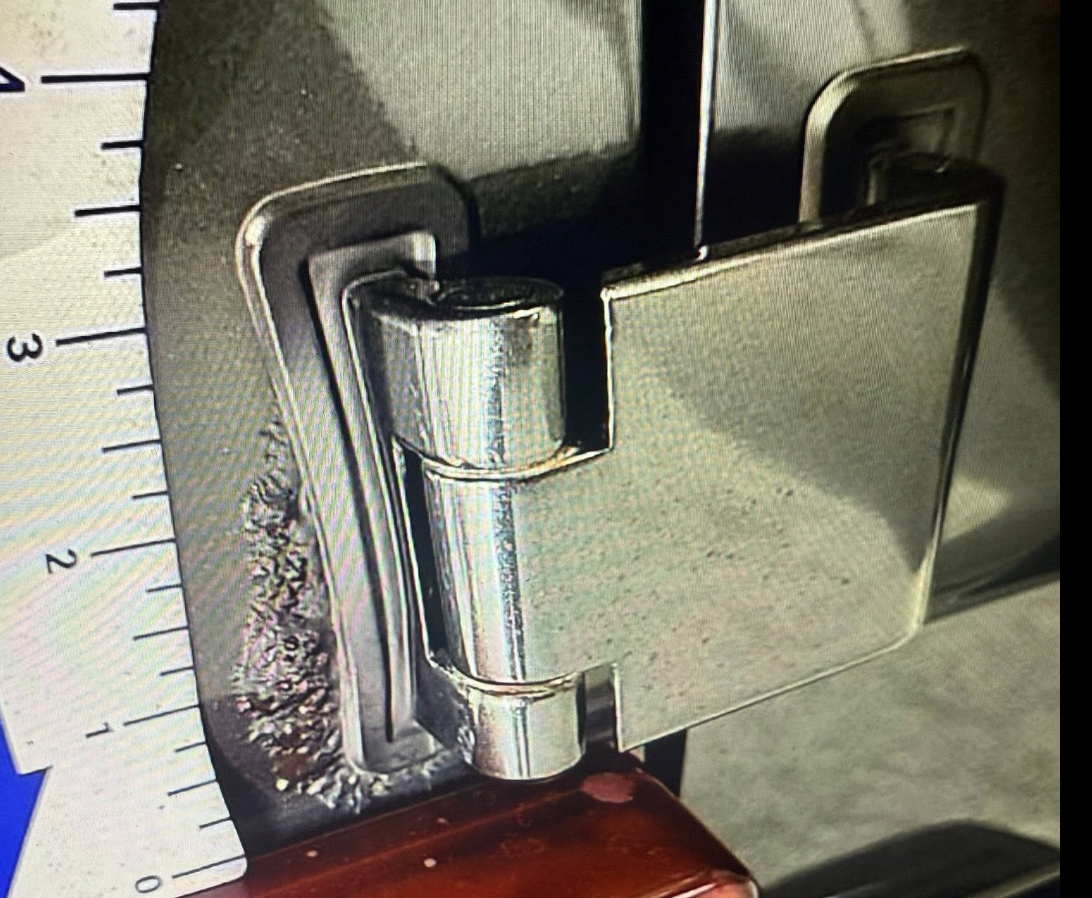

   Unfortunately, rust is an inescapable reality on the G‑Class, so walk away from any truck that shows heavy corrosion. During your inspection, pay special attention to the roof panel around the sunroof, the metal beneath the tail‑lights + rear barn door, every door hinge, the rear spring perch mounts, the windshield gasket perimeter, the bases of the side‑view mirrors, the hidden “dog‑leg” cavities inside each door, and every seam along the body panels. Catching even light surface rust here can save you from far costlier structural repairs down the road. That being said do not eliminate a clean well preserved G over a minor area of corrosion, at this age you want a balance and if the truck is clean, well maintained but has a small spot dont immediately eliminate it as repairs can be made.

2. MECHANICALS

   G500 - G55 - G550 -G63. This is the pecking order for mechanical reliability. Overall the Mercedes G class is a very robust and reliable platform in every single trim. Compared to a Land Rover it is a Toyota Prius however each model will have a few nuances which I will briefly outline. Again at this age its worth checking for the normal oil leaks (valve cover gaskets, oil filter housing etc)

   2002-2008 Mercedes G500- Very reliability. M113 5.0 V8 mated to the 5G transmission (07-08 did receive the M113 5.0 V8 mated to the 7 Speed). Early trucks (02-04) suffer from electrical gremlins which include seat motor/control issues, window regulator/motor issues, and door lock actuators. These issues improved every year and by 05-06 were mostly eliminated. Transfer case motor/actuators were also an issue.

   2009-2012 Mercedes G550 - Again very reliable. M273 5.5 V8 mated to the 7 Speed Transmission. Substantial bump in horsepower from 292 HP to 382 HP, AMG mufflers standard and in my opinion the drivability is much better with the added power. Frequently see starters needing replacement ever 50-60k miles (not a huge job and fails slowly so you have plenty of time to catch). 7G transmission should have fluid changed every 40-50k miles. Occasionally cam magnets needing replacement (another low impact job). Intake manifold swirl flap (this effected all MB’s with the M273).

   2013-2015 Mercedes G550 - Final years of the N/A V8 G550 - Mechanically same as the 09-12 G550’s but some great improvements made cosmetically and electronically. Addition of Blind Spot Monitors, adaptive cruise control, updated audio system.

   2016-2018 Mercedes G550 - Final years of the mighty solid axle W463 G Wagen - I mistakenly dismissed these trucks, believing they carried the problematic M278 V8. I’ve since learned they’re actually powered by the far superior M176—prompting a complete reassessment of their appeal. Of course for ultimate reliability the 2002-2015 will reign supreme HOWEVER this generation is still a reliabile option, with a large bump in power to 416 HP. These trucks are very quick and a blast to drive. By this generation electrical gremlins and small issues have been eliminated in my experience. These trucks are also 10+ years newer at this point, and generally have lower miles. The M176 is a smaller less powerful example of the M177 engine, which means it sees less stress and less heat. Common issues that one must be aware of and have checked: Rear main seal and valve cover gasket leaks triggered by a failed crankcase‑vent oil separator (while the RMS is a $5 part, its $3-5k in labor). Thanks to its forged crank, cross‑bolted main bedplate, and simpler wet‑sump lubrication, the M176 shrugs off abuse that sees the related 700‑hp M177 run at its limit, while its lower‑boost (0.9–1.1 bar) “hot‑inside‑V” turbos stay cooler and seldom fail when oil is changed on time. Follow the factory service schedule with quality oil and, as TorqueCars notes, you’ll have a reliably bulletproof V‑8. In my opinion you should change the oil on these every 3-5k miles.

   2003-2011 Mercedes G55 AMG - The AMG variant of the legendary G Wagen brings upgraded power, sportier suspension, upgraded braking and cosmetic changes (wider wheels, wider fender flares and AMG specific trim). The original 2003-2004 G55 came with a beefed up natural aspirated M113 V8 with 349 HP while the 2005-2011 saw the supercharged V8 with 493 HP. Both of these engines are very reliable. No mechanical issues to note and the section covering the 2002-2008 G500 will cover general issues found with them. General consensus seems to be the suspension offered in the G55 variant is extremely harsh, I have had great success swapping G550/500 springs and shocks or any of the options offered by aftermarket providers.

   2013-2018 Mercedes G63- Twin Turbo fire breathing beast. Like all things in life it comes with some trade offs (maintenance and repairs, remember you have to pay to play) . The M157 Twin Turbo V8 equipped G63 makes 536 HP, it is a rocket ship. Upgraded but softened AMG suspension, large (expensive to replace) brakes and AMG appearance items (fender flares, grills, wheels and more). M157 issues are well documented but worth noting this generation saw upgrades and updates (particuraly the timing chain, head bolts etc) . Inspection of the cooling system is a a must: water pump is a must inspect as its a very expensive ($3-4k after doing other items). Brakes are expensive and do every 30-40k miles.

3. DIFFERENTIAL LOCKS- Every G‑Class is equipped with three locking differentials which is an off‑road asset that, even if rarely used, strongly influences resale value. As this video demonstrates, testing their engagement is simple; if a locker won’t actuate, have a G‑Wagen‑experienced technician flush the hydraulic system first, then proceed with targeted diagnostics.

4. Cosmetic Changes and Issues- Build quality on the G Wagen is exceptional. Every G‑Class is still hand‑built in Magna Steyr’s dedicated plant in Graz, Austria the former Steyr‑Daimler‑Puch works where some 2,000 craftspeople weld, rivet and stitch. Because the line uses only one robot (it just applies the windscreen adhesive), a G‑Wagen soaks up roughly 100 human working hours which is around ten calendar day…versus 24‑30 hours for an S‑Class.

   2002-2008 G500 - Minor changes made over the year. 2003 saw the addition of turn signals in the mirrors. 2002 has a hard fiber board headliner, while 2003+ saw a fabric headliner which at this point is probably sagging and in need of replacement, be sure to check this area. 2007 brought about updates which include projector HID headlights and rounded fog lights, as well as an updated interior headunit and button layout, 2008 saw the gauge cluster updated. Glove box handles, interior door handles, and door pockets are common wear items and are frequently broken and in need of replacement on early trucks.

   2009-2012 G550 - 2009 G550’s saw an updates to the front grill, and tail lights. Interior saw new seat styles with heated and cooled seats now standard, update steering wheel. 2012 did not offer an AMG model but instead a transitory model labeled the “Edition Select” which saw headlight/tail light guards, wider flares and AMG exhaust.

   2013-2015 G550/63 - Exterior changes include new front bumper to accommodate the adaptive radar sensor, new sleek mirrors, updated interior which includes new gauge cluster, paddle shifters with a new steering wheel, new dash mounted screen, and fresh buttons and layout. 2015+ G’s received upgraded door cards. G63’s saw updated wheels, bumpers to accommodate intercoolers, AMG grills/brush guards and more.

   2016-2018 G550- AMG extended fender flares became standard on the 550. 19” AMG style wheels became standard. Front AMG style bumper to accommodate intercoolers. 2017+ received a larger center screen with CARPLAY. 2018 G’s received inset glass in the rear windows with no gasket.
